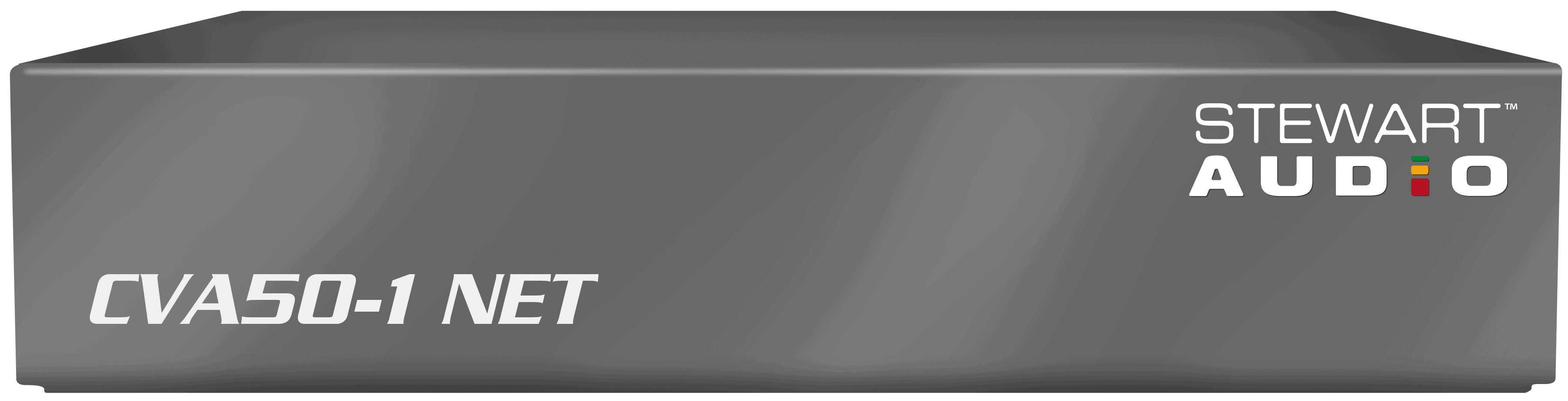

Mono constant voltage Dante™ networked amplifier in a subcompact, 1/3 rack form factor. Includes both local and network inputs with priority switching.
The CVA50-1 NET and NET+ are subcompact 50W mono 70V/100V Dante™ networked power amplifiers built to meet the rigorous demands of high quality commercial, industrial and Pro Audio sound installations. The CVA50-1 NET version is designed with a Network only signal input, while the Net+ version has both Network and local legacy inputs. A priority switch on the rear allows for selective ducking of either signal to allow one amplifier to do the work of two. These versatile dual input amplifiers allow for legacy audio devices to be used in a local setting while still having the flexibility of utilizing a networked signal. By setting the priority to local, the network could play background music until a signal is detected on the local inputs from a TV in a lobby. If the priority is set to network, a page could duck the TV output in a training room. These lightweight Class D amplifiers straddle the digital divide using all the benefits of the networked audio and while allowing for legacy device use.
| CVA50-1 100V/70V | 50W |
| Frequency Response (+0, -3 dB) | 100 Hz – 20 kHz |
| THD+N | <0.1% @ Full Power |
| Signal-to-Noise Ratio | >80dB |
| Remote Volume Control | 0-10V DC, 4 Pin Euro Block (local input only) |
| Input Sensitivity | 0.5V (-6 dBV) |
| Standard Voltage Gain | 151X (43dB) @ 70.7 Volts out |
| Input impedance (Balanced/Unbalanced) | 20k Ohms/10k Ohms |
| Sleep, Idle Current Draw , 1/8 power draw | 3.3 / 6.9 / 14.2 Watts |
| Class | D |
| Input Connectors | RJ45, Euro Block 3 Pin, 3.5mm |
| Output Connectors | Euro Block 2-pin, 3.5mm, line out |
| Power Supply | External in-line 48VDC (Included), 2 pin Euro Block |
| Cooling | Convection-Cooling (No Fans) |
| Controls | Level (local input only) |
| LED Indicators | Power, Signal Present & Clip |
| Construction | Aluminum Chassis & Top Cover |
| Dimensions (height, width, depth) | 1.25″H x 6.00″W x 4.00″D (3.2H x 15.2W x 10.2D cm) |
| Weight | <1.2 lbs (0.54 kg) |
| Warranty | 3 years |
| Plenum Rating | UL 2043 Approved |
