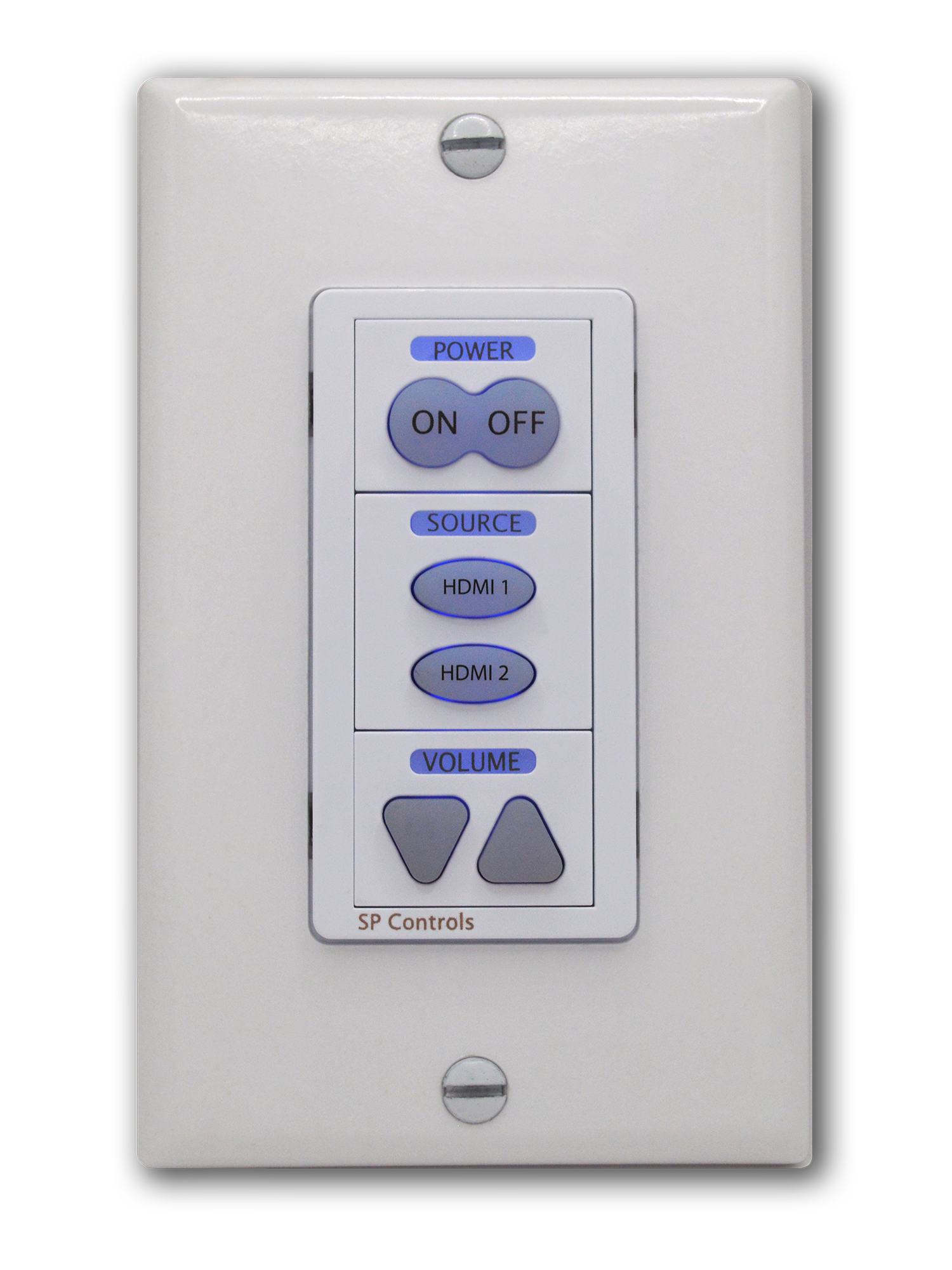

The PixiePlus Device Control Module provides a simple, standardized control interface for projectors, monitors or other AV display devices in a compact single-gang form factor. * Dual HDMI button shown in image is optional and does not ship with PixiePlus.
We offer Pre-Configuration services that allow you to get the unit already programmed and ready to install. See Services tab below for PXE-CONFIG.
Access our library of helpful installation tutorials on our SP Controls How-To Videos page.
| Model Numbers | Description |
|---|---|
| PXE-DCM+ | PixiePlus 8-button Display Control Module |
The customizable interface allows for a variety of configurations from one to eight buttons, giving the user the ability to tailor the PixiePlus to the exact requirements of the devices being controlled. This design not only provides an attractive and professional looking interface but allows you to eliminate any un-needed buttons that may confuse the end user. A variety of optional button inserts are available to meet your application. IR learning takes mere seconds using a paper clip. The PixiePlus is also capable of RS232 or relay/contact closure control. Serial and relay configurations require the use of the PXE-PGM-TOOL (Programming Wand sold separately) or have us configure the PixiePlus before it ships. The PixiePlus can be configured with a user-defined security code to prevent unauthorized use.
|
Literature |
|
|---|---|
Specification Sheet |
|
User Manual |
|
Room Diagrams |
|
|---|---|
PixiePlus Application #3 w/Amplinc & NRC |
|
PixiePlus Application #2 with Audio Amp Layout w 4×1 Switcher |
|
PixiePlus Application #5 With Audio Amp 4×1 Switcher Manual Screen |
|
PixiePlus RS232 Wiring Diagram with separated switcher and projector |
|
Installation Guides |
|
|---|---|
One-sheet diagram of wiring for Pixie+ with multiple emitters |
|
One-sheet diagram of wiring for multiple Pixie+ and emitters |
|
Video |
|
|---|---|
PixiePlus Customization Options |
VIEW |
| Services | |
|---|---|
| PXE-CONFIG | PixiePlus Pre-Configuration Form |
Factory service that saves time and money. The PXE-CONFIG is an optional factory service where we pre-program the PixiePlus with the desired buttons, and program it with Serial and Relay (if needed) commands prior to shipping.
This service is preformed by trained technicians and allows for the PixiePlus to be wired up and plugged in for immediate usage, reducing in-field labor and troubleshooting problems.
No need for pre-configuration when the PixiePlus is being used for IR control.
PXE-CONFIG requires the purchaser to fill out the online PixiePlus Pre-Configuration Form Configuration – Stewart Audio™
Please be sure to review our short Video Tutorials on our website at: SP Controls Videos – Stewart Audio™
